FS60- UAV Hyperspectral Imaging Camera for High-Stability Spectral Image Acquisition

Menşe yeri ÇIN
Marka adı CHNSpec
Sertifika CE
Model numarası FS-60
Min sipariş miktarı 1
Fiyat gotiable
Ambalaj bilgileri Karton kutu
Teslim süresi 5-7gün
Ödeme koşulları T/T
Yetenek temini ayda 1000

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
RTK konum doğruluğu RTK FIX: 1 cm+1 ppm (yatay) 1,5 cm+1 ppm (dikey) Çalışma Frekansı 2,4000-2,4835 GHz 5,725-5,850 GHz
görüntüleme hızı ROI'den sonra tam bant 128Hz, 3300Hz elde edilebilir SNR(Tepe) 600/1
IP koruma seviyesi IP45 Işıklandırma Sistemi Pasif aydınlatma (ışık kaynağı olmadan)
Maksimum uçuş süresi 55 dakika Spektral aralık 400-1000 nm
spektroskopik yöntemler Izgara Maksimum yatay uçuş hızı S modu: 23 m/sn, P modu: 17 m/sn
Mesaj bırakın
Ürün Açıklaması
FS60- UAV hyperspectral measurement system

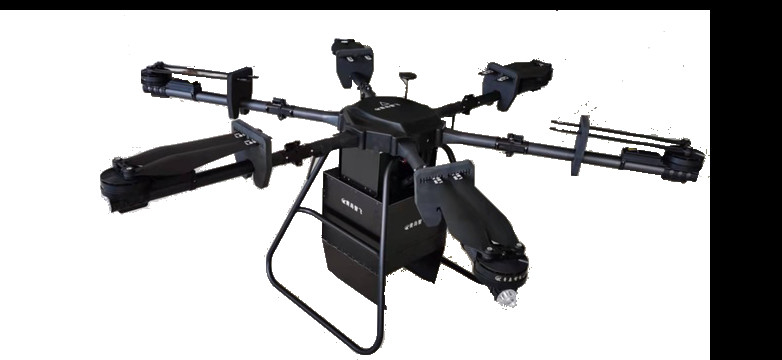

FS60- UAV Hyperspectral Imaging Camera for High-Stability Spectral Image Acquisition 0
The FS60 unmanned Superspectral Survey system used a high signal-to-noise ratio and a high-speed CCD imaging device to ensure highly stable spectral imaging. The independently developed low-efficiency image processing calculation method greatly increased the flight time of finished products and lowered the system's energy consumption.


♦Dji M300RTK (DJI M600Pro optional) is used as the flight bearing platform.
♦Ultra-high speed spectral scanning imaging device with high signal-to-noise ratio provides high stability of
  spectral image acquisition.
♦A self-developed high efficiency and low power image processing algorithm is adopted to greatly prolong the
  flight time of the whole machine and reduce the power consumption of the system.
♦Through real-time measurement of spectral image information of plants, water, soil and other ground objects, it
  can be applied to precision agriculture, crop growth and yield assessment, forest disease and insect pest
  monitoring and fire monitoring, coastline and marine environmental monitoring, lake and watershed environ
  mental monitoring and other applications.
♦The system design is compact and the main spectral resolution of the imaging spectrometer is up to 2.5nm.
  Components: high stability head, hyperspectral imager, embedded data acquisition and processing storage
  unit, wireless image transmission system, GPS-RTK navigation system, ground receiving workstation, ground
  control system, reflectance calibration board.
Applications
FS60- UAV Hyperspectral Imaging Camera for High-Stability Spectral Image Acquisition 1
Technical parameters
Flight unit parameters (M300RTK)
Size Dimensions (expanded, excluding blades) : 810 x 670 x 430 mm (L x W x H)
Dimensions (folded, including blades) : 430 x 420 x 430 mm (L x W x H)
Symmetrical motor wheelbase 895 mm
Weight (including lower Air weight (without battery) : 3.6kg
single head bracket) Air weight (including dual batteries) : 6.3kg
Maximum load of single gimbal damping ball 930g
Maximum takeoff weight 9 kg
Working frequency 2.4000-2.4835 GHz 5.725-5.850 GHz
Transmit power (EIRP) 2.4000-2.4835 GHz:
29.5 dBm(FCC);18.5dBm(CE)18.5 dBm(SRRC);18.5dBm(MIC)
5.725-5.850 GHz:28.5 dBm(FCC);12.5dBm(CE)28.5 dBm(SRRC)
Hover accuracy (P-GPS) Vertical: ± 0.1m (when visual positioning works normally) ± 0.5m (when GPS works normally)
± 0.1m (when RTK positioning works normally)
Level: ± 0.3m (when visual positioning works normally) ± 1.5m (when GPS works normally)
± 0.1m (when RTK positioning works normally)
RTK position accuracy RTK FIX: 1 cm+1 ppm (horizontal) 1.5 cm+1 ppm (vertical)
Maximum angular velocity of rotation Pitch axis: 300°/s Heading axis: 100°/s
Maximum pitch angle 30° (P mode with forward-vision system enabled: 25°)
Maximum rate of rise S mode: 6 m/s,P mode: 5 m/s
Maximum velocity of descent (vertical) S mode: 5 m/s,P mode: 4 m/s
Maximum sloping descent rate S mode: 7 m/s
Maximum horizontal flight speed S mode: 23 m/s,P mode: 17 m/s
Maximum flight altitude 5000 m (2110 blade, takeoff weight ≤7 kg) / 7000 m (2195 plateau quiet blade, takeoff weight ≤7 kg)
Maximum wind speed tolerance 15m/s (12m/s during takeoff and landing)
Maximum flight time 55 min
Supports the gimbal installation mode Single holder set at the bottom, single holder set at the top, double holder set at the bottom, single holder set
at the bottom + single holder set at the top, double holder set at the bottom + single holder set at the top
IP protection level IP45
GNSS GPS+GLONASS+BeiDou+Galileo
Operating ambient temperature -20°C to 50°C



Hyperspectral camera parameters
Lighting system Passive lighting (without light source)
Spectroscopic methods Grating
Spectral range 400-1000nm
Spectral band 1200
Resolution of spectrum 2.5nm
Slit width 25um
Transmission efficiency 60%
Stray light 0.5%
Number of spatial pixels Maximum 1920 (software configurable)
Pixel size 5.86um
Imaging speed Full band 128Hz, 3300Hz can be achieved after ROI
Detector CMOS
SNR(Peak) 600/1
The camera output USB3.0 or Gigabit network
The camera interface C-Mount
Accessories USB3.0 transmission line or Gigabit network transmission line
ROI Multiple regions
Embedded data acquisition and processing storage unit I7 processor 512GSSD storage



FS60- UAV Hyperspectral Imaging Camera for High-Stability Spectral Image Acquisition 2

♦Easy to operate, it can achieve single operation without professional
drone operator.
♦The ground station can be used to observe the sampling location of the
aircraft in real time, and the ground station can be used to set the
preview and correction functions of the route data collected
point-by-point: radiosity correction, reflectance correction and regional
correction support batch processing.
♦Real-time common vegetation index calculation function.
♦Support custom real-time analysis model input function.
♦ENVI is perfectly compatible with multiple data formats.
