Color Meter Pro With D/8 Geometry And Spectral Sensor For More Accurate Measurement
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xAydınlatma/görüntüleme geometrisi | d/8 | Tekrarlanan doğruluk | delta E*ab 0.1 |
---|---|---|---|
Ağırlık | 90g | Kullanımı | kolorimetre |
Ürün Adı | delta E hassas kolorimetre | Işık kaynağı | LED |
Renk Alanı | CIEL*a*b*C*h* CIEL*a*b* | Garanti | 1 Yıl, 12 Ay |
Hacim | Çap: 31 mm, yükseklik: 102 mm | Yazılım desteği | Android, iOS |
Vurgulamak | Spectral Sensor Color Meter Pro,Accurate Measurement Color Meter Pro,D/8 Geometry Color Meter Pro |
Color Meter Pro For Measuring Color Difference With Mobile Phone APP Build-In RAL NCS Pantone Color Shades

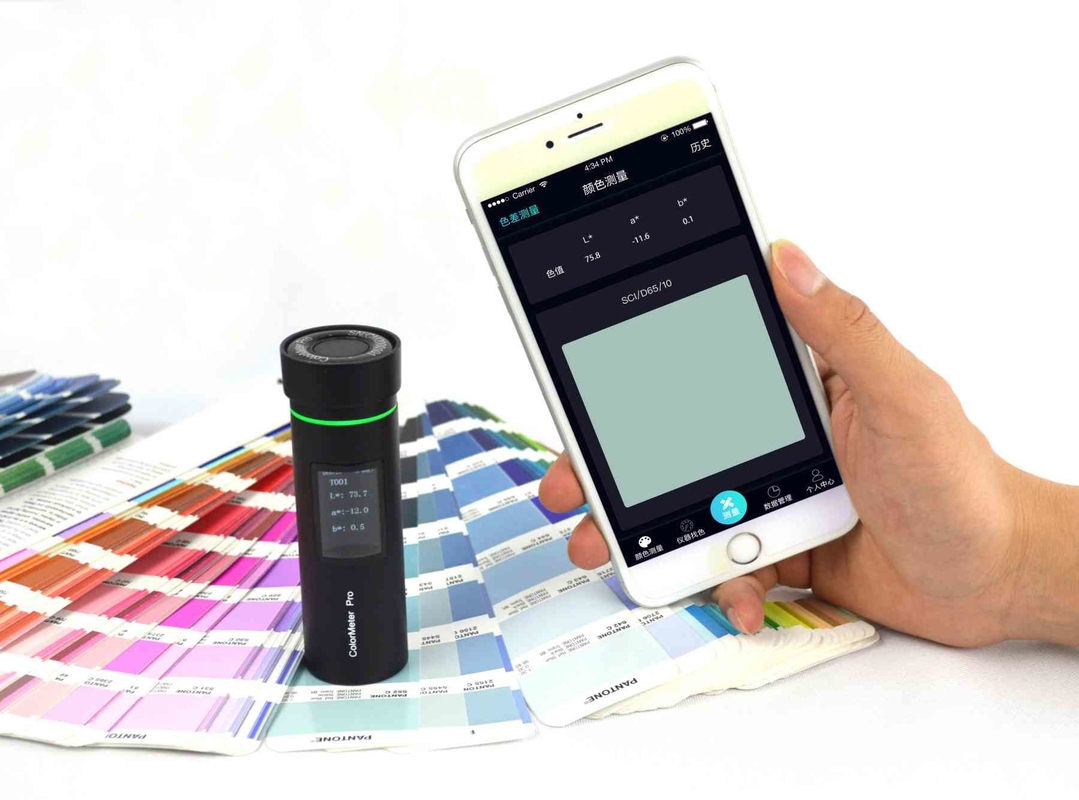

Colormeter Pro colorimeter is different from the traditional colorimeter. It is compact and can be put in the user's pocket, which is more convenient to carry; meanwhile, it adopts the D/8 structure of general spectrophotometer, which makes the measurement more accurate; the instrument can be connected wirelessly with Android or IOS devices, which can manage the color on the cell phone; it has the color number search function to find the color you want. It is widely used for color control in plastic, printing, packaging, textile, garment and other industries.
-
Color difference instrument with more accurate color measurement
-
A more accurate color difference meter with a massive color card database
-
Automatic calibration,
-
Single machine is available, and there are many measurements and data
-
Cloud database, easier to view and upload
Part 1. Instrument Function Introduction
1. Measure Color Value
Adopt international used D/8 (Diffused Illumination, 8 degree viewing) geometry and SCI mode to make measurement more accurate.
Adopt spectral sensor to provide reflectance data which make its performance much better than colorimeter.
To get correct L*a*b, L*Ch, RGB, Hex and other color value under light source D65 or D50.
It can measure whiteness index, yellowness index, color strength, color fastness, opacity and other 20 kinds of parameters with 26 kinds of illuminants.
Operate on Instrument
Operate on Mobile Phone APP
2. Measure Color Difference Value
“Pass” or “Fail” judgment can be seen from both instrument and APP.
ΔE *ab, ΔE * CH and other color difference formulas, display color difference value, color difference evaluation results.
Connect to App for color difference evaluation, color difference tolerance and parameters can be set in APP.
3. Portable and Massive Color Card Database
Bluetooth to connect with mobile phone APP to create database to upload the color shades from printing, paint, textile color cards.
No need to carry big and heavy color card, we can find color card database from Colormeter Pro APP and find the closed/similar color easier and faster.
4. Artificial Intelligence for Accurately Measure Color
AI-based color search engine for accurately measure color;
Color can be collected anywhere and anytime.
5. Innovation Design for Auto Black and White Calibration
Auto instrument black and white calibration for easier and correct color test
APP will remind for calibration if instrument works for long time
From APP we can do manual calibration and set calibration interval.
6. Single Instrument for Test and Save Test Value
1.14 inches IPS display screen to show color information.
Data can be saved on instrument and instrument data can be synced into APP.
7. Cloud database, more convenient to view and upload
Official color card databases are available.
Personal users can update color information to cloud and share between different instruments which make color management much easier.
Enterprise users can create and manage their own color card library and formula information in the cloud and share the information to their customers and suppliers through the unique invitation code.
8. Packing List
Name | Qty. |
Instrument | 1 |
Type-C Cable | 1 |
Operate Manual | 1 |
9. Technical Data
Model | ColorMeter Pro |
Illumination and Viewing System |
D/8, SCI (specular component included) |
Color Spaces , Color Difference and Indices | Reflectance, CIE-Lab, CIE-LCh, Hunter Lab, CIE-Luv, XYZ, Yxy, RGB, Color Difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), Whiteness Index (ASTM E313-00,ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YellownessIndex |
(ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness Index(My,dM), Staining Fastness, Color Fastness, Tint(ASTM E313-00), Color Density CMYK(A,T,E,M), Metamerism Index Milm, Munsell, Opacity, Color Strength | |
Light Source | LED (Full Wavelength Balanced LED Light Source) |
Measure Aperture | 8mm |
Wavelength Interval |
10nm |
Wavelength Range |
400-700nm |
Repeatability | ΔE≤0.1 (when a white tile is measured 30 times at 5-second intervals after calibration) |
Measurement Time |
1s |
Interface | USB, Bluetooth |
Illuminants | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30, U35,DLF,NBF,TL83,TL84 |
Observer | 2° and 10° |
Display Screen | IPS Full Color Screen (screen resolution 135*240,1.14 inches) |
Battery | 4.2V / 760mAh, Rechargeable, 10,000 continuous tests |
Language | English and Chinese |
Calibration | Auto |
Software Support | Android, IOS, Windows |
Weight | About 90g |
Instrument Size | Diameter 31mm , Height 102mm |
